Custom Controls

Custom controls can be easily added to your own mod and automatically setup inside the controls menu! (so you don't have to code it yourself)

To get started, put a file in ./data/config called controls.xml.

Here is an example xml that you can copy from:

<controls>
    <category name="TEST CATEGORY">
        <control name="dodge" saveName="dodge" menuName="DODGE" keyP1="SPACE" keyP2=""/>
    </category>
    <category name="SIX KEY">
        <control name="6k0" saveName="control_6k0" menuName="LEFT" keyP1="S" keyP2="" menuIcon="game/notes/default" menuAnim="purple0"/>
        <control name="6k1" saveName="control_6k1" menuName="UP" keyP1="D" keyP2="" menuIcon="game/notes/default" menuAnim="green0"/>
        <control name="6k2" saveName="control_6k2" menuName="RIGHT" keyP1="F" keyP2="" menuIcon="game/notes/default" menuAnim="red0"/>
        <control name="6k3" saveName="control_6k3" menuName="LEFT" keyP1="J" keyP2="LEFT" menuIcon="game/notes/default" menuAnim="purple0"/>
        <control name="6k4" saveName="control_6k4" menuName="DOWN" keyP1="K" keyP2="DOWN" menuIcon="game/notes/default" menuAnim="blue0"/>
        <control name="6k5" saveName="control_6k5" menuName="RIGHT" keyP1="L" keyP2="RIGHT" menuIcon="game/notes/default" menuAnim="red0"/>
    </category>
</controls>

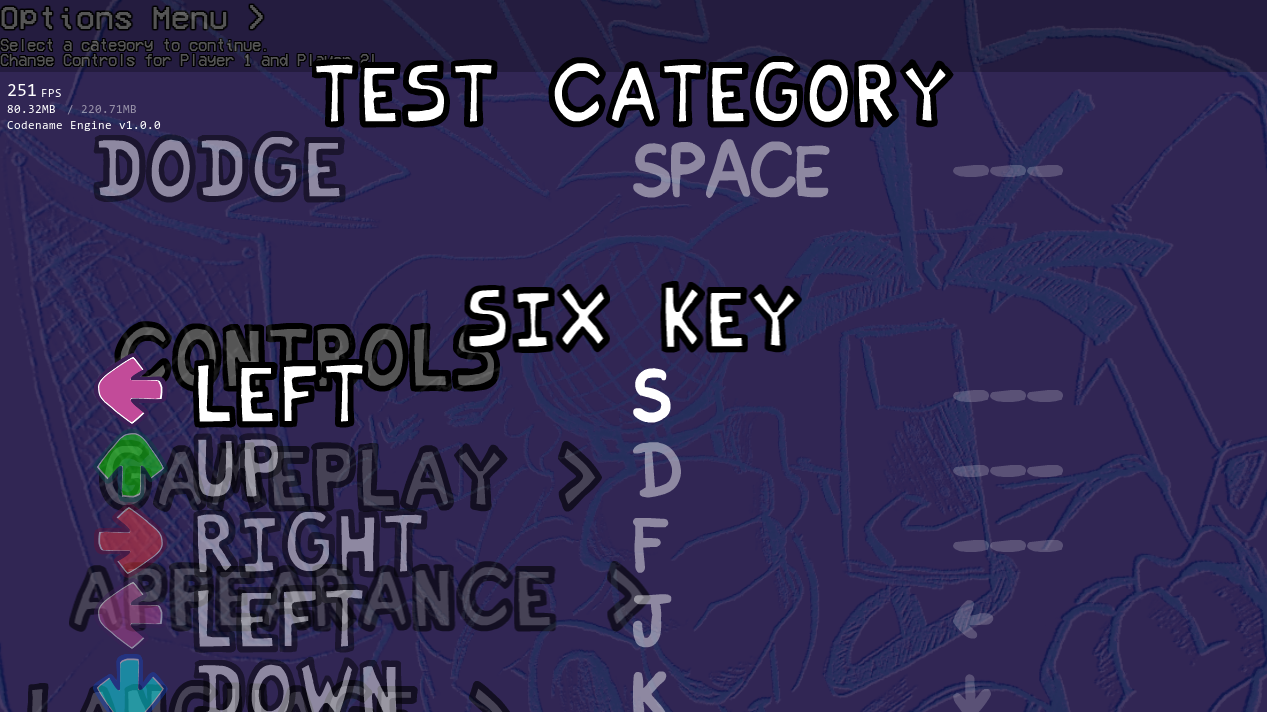

You want to start by creating a <category> node, which will include any options inside that section while in the menu (as shown in the screenshot)

The <category> only has one available property:

• name - This is the name that will appear for the category in the controls menu

Each <control> node can then be added as a subnode of the category

Here's the list of properties for each control:

• name - This name is what will be used to access the control later
• saveName - This is the name used with FlxG.save.data for the control to be stored in, make sure to name this carefully and not break any other save data!
• menuName - This is the name that will be displayed inside the menu
• keyP1, keyP2 - These are what the control key binding will default to, this name will need to be matching with a FlxKey name to correctly set, and can be set to "" to default to none. The P1 and P2 determine which player uses the binding in co-op mode (when checking .controls on the StrumLine) or when checking directly through controlsP1 or controlsP2, and will act as 2 bindings by default just like any other control.
• menuIcon - This is an image path to a custom control icon that can be used in the menu, must be a sparrow xml spritesheet! (optional)
• menuAnim - This is the animation prefix for the spritesheet set by menuIcon (optional, but required if using menuIcon)

Accessing in scripts:

The control state can be checked multiple ways, typically just by calling controls (assuming that you're in a MusicBeatState), and then calling the member functions getJustPressed(name), getJustReleased(name), or getPressed(name).

Per player controls can be accessed with controlsP1 and controlsP2, and per strumline controls can be accessed with .controls on any StrumLine (example: strumLines.members[0].controls), which will change between P1/P2 controls when using co-op mode (only while in PlayState).

Example usage of accessing a control inside of a script:

function update(elapsed) {
    //global
    if (controls.getJustPressed("dodge")) {
        trace("dodge!");
    }
    if (controls.getJustReleased("dodge")) {
        trace("released dodge!");
    }
    if (controls.getPressed("dodge")) {
        trace("holding dodge!");
    }

    //per player
    if (controlsP1.getJustPressed("dodge")) {
        trace("p1 dodge!");
    }
    if (controlsP2.getJustPressed("dodge")) {
        trace("p2 dodge!");
    }

    //per strumline (changes on co-op mode)
    if (strumLines.members[0].controls.getJustPressed("dodge")) {
        trace("strumline0 dodge!");
    }
    if (strumLines.members[1].controls.getJustPressed("dodge")) {
        trace("strumline1 dodge!");
    }
}

Multikey Control Bindings

You may notice that if you change a strumline's key count the bindings will not work by default.

This can be easily solved by setting up controls in a specific way inside the controls xml.

All you need to do is have the name property of the controls to be set to keyCountkstrumID for each one, for example name="5k0" will be for the first strum when the key count is 5.

If you've named it correctly you should have the bindings automatically set for that key count!
